Manhattan图的各种画法
基因组分析中，不管是GWAS还是选择信号分析，对于结果的展示都离不开曼哈顿图 (gwaslab, CMplot, qqman太low就不介绍了)，很多时候，绘制一个比较满意的曼哈顿图还是比较令人头疼的，这里提供几个比较常用的曼哈顿图绘制的包，以及最后的一个自定义的使用ggplot绘制的脚本。
gwaslab

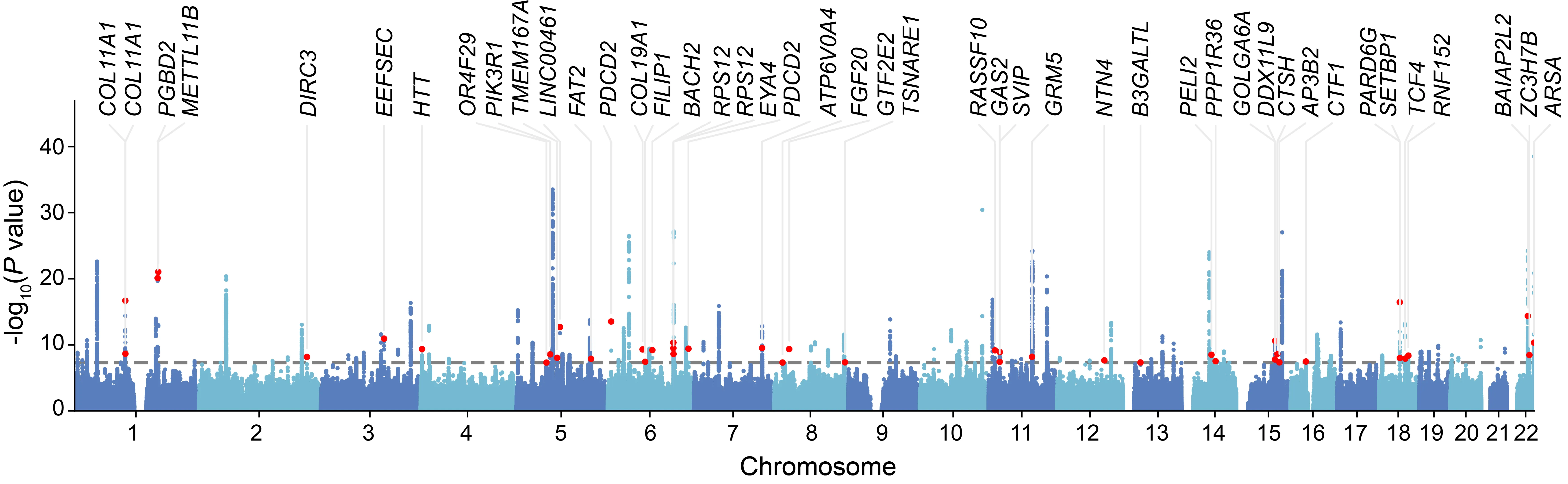

下图是一个简单示例，可以看到，不仅是能绘制图，更能将我们感兴趣的SNP对应的gene标出来。
软件安装
pip install -U gwaslab如果害怕pip安装会对自己环境有影响，可以conda单独创建个环境，然后安装
conda create -n gwaslab -c conda-forge python=3.12
conda activate gwaslab
pip install -U gwaslab首先是读取文件了，这里就需要指定自己的GWAS summary对应的参考基因组版本了，
软件是内置了19, 38两个版本的
import gwaslab as gl
import pandas as pd
import matplotlib.pyplot as plt
gwas = gl.Sumstats("ARHL_MVP_AJHG_BBJ_reformatMETAL_addchr.gz",
snpid="SNP",
chrom="CHR",
pos="POS",
ea="A1",
nea="A2",
eaf="freq",
beta="beta",
se="SE",
p="p",
n="N",
build="19")读取完文件之后，就可以画图了，这里只是一个简单示例，可以指定一个snplist用于标注
df = pd.read_csv("novel_snp_ARHL.txt", sep="\t")
anno_list = df["SNP"].tolist()
gwas.plot_mqq(mode="m", skip=0, sig_line_color="red",
fontsize=12, marker_size=(5,5),
anno="GENENAME", anno_style="expand",
anno_set=anno_list, anno_fontsize=12,
repel_force=0.01, arm_scale=1,
xtight=True, ylim=(0,38), chrpad=0.01, xpad=0.05,
# cut=40, cut_line_color="white",
fig_args={"figsize": (18, 5), "dpi": 500},
save="mqq_plot.png", save_args={"dpi": 500},
check=False, verbose=False)CMplot: Rectangular-Manhattan
CMplot的示例数据如下，header不重要，顺序一致即可
> data(pig60K) #calculated p-values by MLM
> data(cattle50K) #calculated SNP effects by rrblup
> head(pig60K)
SNP Chromosome Position trait1 trait2 trait3
1 ALGA0000009 1 52297 0.7738187 0.51194318 0.51194318
2 ALGA0000014 1 79763 0.7738187 0.51194318 0.51194318
3 ALGA0000021 1 209568 0.7583016 0.98405289 0.98405289
4 ALGA0000022 1 292758 0.7200305 0.48887140 0.48887140
5 ALGA0000046 1 747831 0.9736840 0.22096836 0.22096836
6 ALGA0000047 1 761957 0.9174565 0.05753712 0.05753712Plot rectangular-Manhattan
CMplot(pig60K,type="p", plot.type="m", LOG10=TRUE,
threshold=NULL,file="jpg",file.name=NULL,dpi=300,

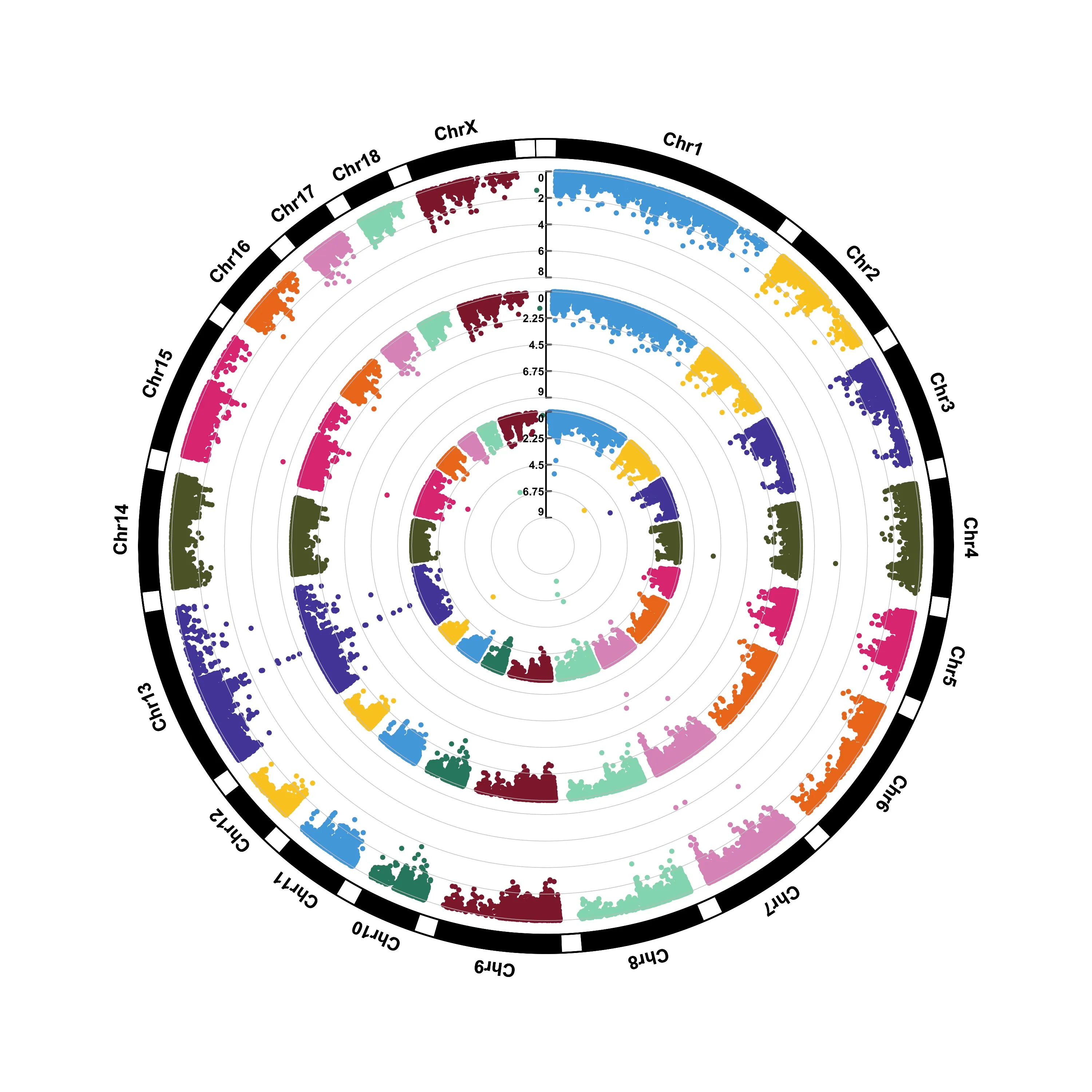

file.output=TRUE,verbose=TRUE,width=14,height=6,chr.labels.angle=45)CMplot: Circular-Manhattan
CMplot(pig60K,type="p",plot.type="c",
chr.labels=paste("Chr",c(1:18,"X","Y"),sep=""), r=0.4,cir.axis=TRUE,
outward=FALSE,cir.axis.col="black",
cir.chr.h=1.3,chr.den.col="black",file="jpg",
file.name=NULL,dpi=300,file.output=TRUE,verbose=TRUE,width=10,height=10)
# to remove the grid line in circles, add parameter cir.axis.grid=FALSE
# file.name: specify the output file name, the default is corresponding column nameggplot2
library(data.table)
library(ggplot2)
library(dplyr)
dt = fread(infile)[, c("CHR", "BP", "P")]
chr_lengths <- dt %>%
group_by(CHR) %>%
summarise(chr_len = max(BP))
data <- dt %>%
arrange(CHR, BP) %>%
mutate(chr_cumsum = cumsum(c(0, head(chr_lengths$chr_len, -1)))[CHR]) %>%
mutate(BPcum = BP + chr_cumsum)
axis_set <- data %>%
group_by(CHR) %>%
summarise(center = (max(BPcum) + min(BPcum)) / 2)
p = ggplot(data, aes(x=BPcum, y=-log10(P), color=factor(CHR))) +
geom_point(alpha=0.9) +
geom_hline(yintercept=-log10(5e-8), color="red", linetype="dashed") +
scale_color_manual(values=rep(c("#1B2C62", "#4695BC"), 22)) +
scale_x_continuous(label=axis_set$CHR,
breaks=axis_set$center,
expand=c(0, 0)) +
scale_y_continuous(expand=c(0, 0)) +
labs(x="Chromosome", y=expression(-log[10](P))) +
theme_classic() +
theme(legend.position="none",
axis.text = element_text(size=20, color="black"),
axis.title = element_text(size=20, margin=margin(t=10), color="black"),
axis.line = element_line(color="black"),
axis.ticks = element_line(color="black"),
axis.ticks.length = unit(0.3, "cm"))

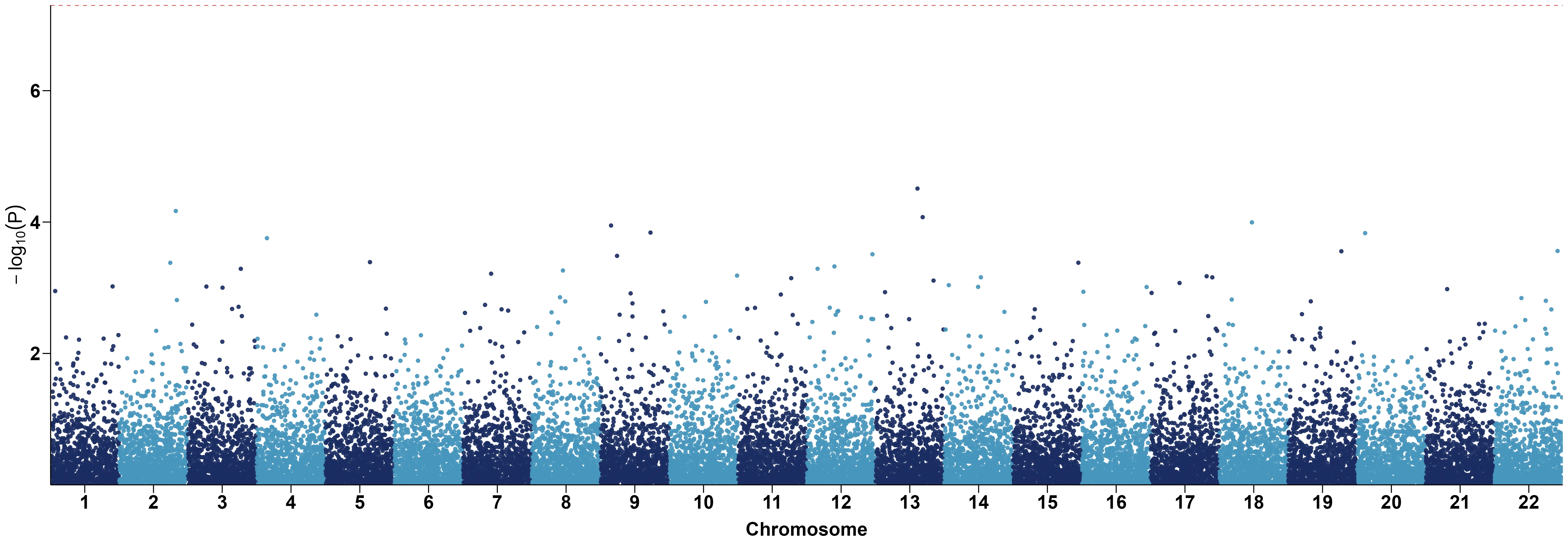

ggsave("my.png", p, height = 8, width = 23, dpi=300)
